447080
Downloads:
Instructions
(PATENT PENDING)

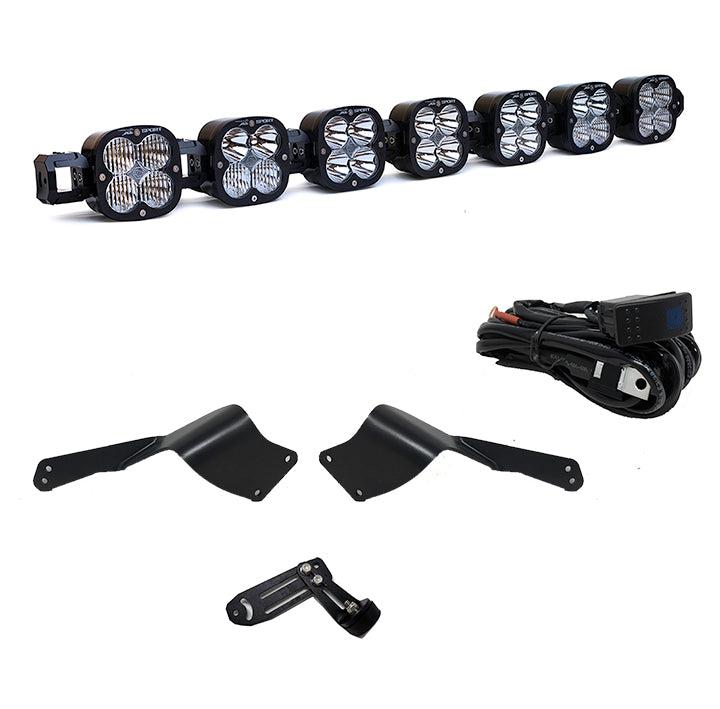

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

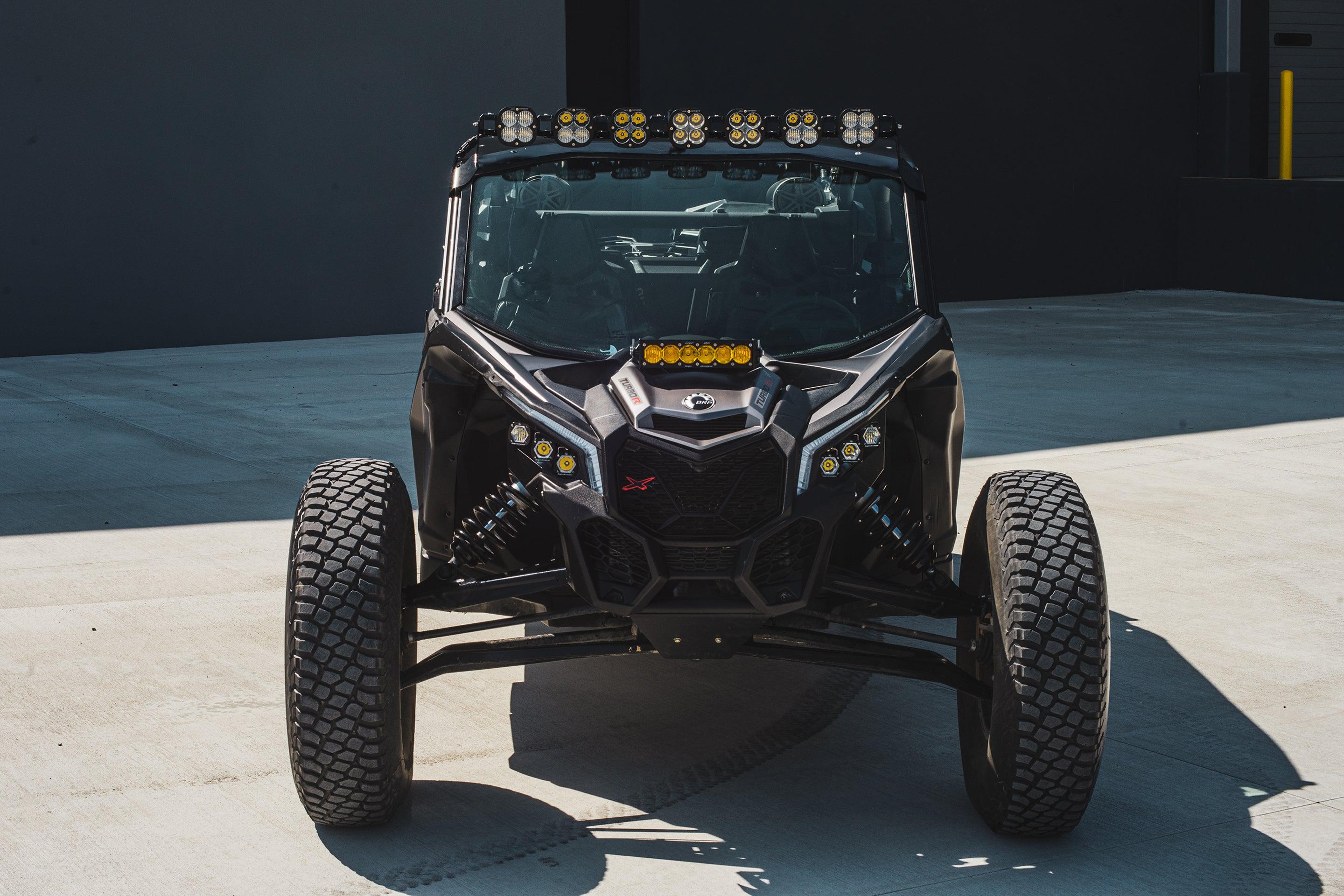

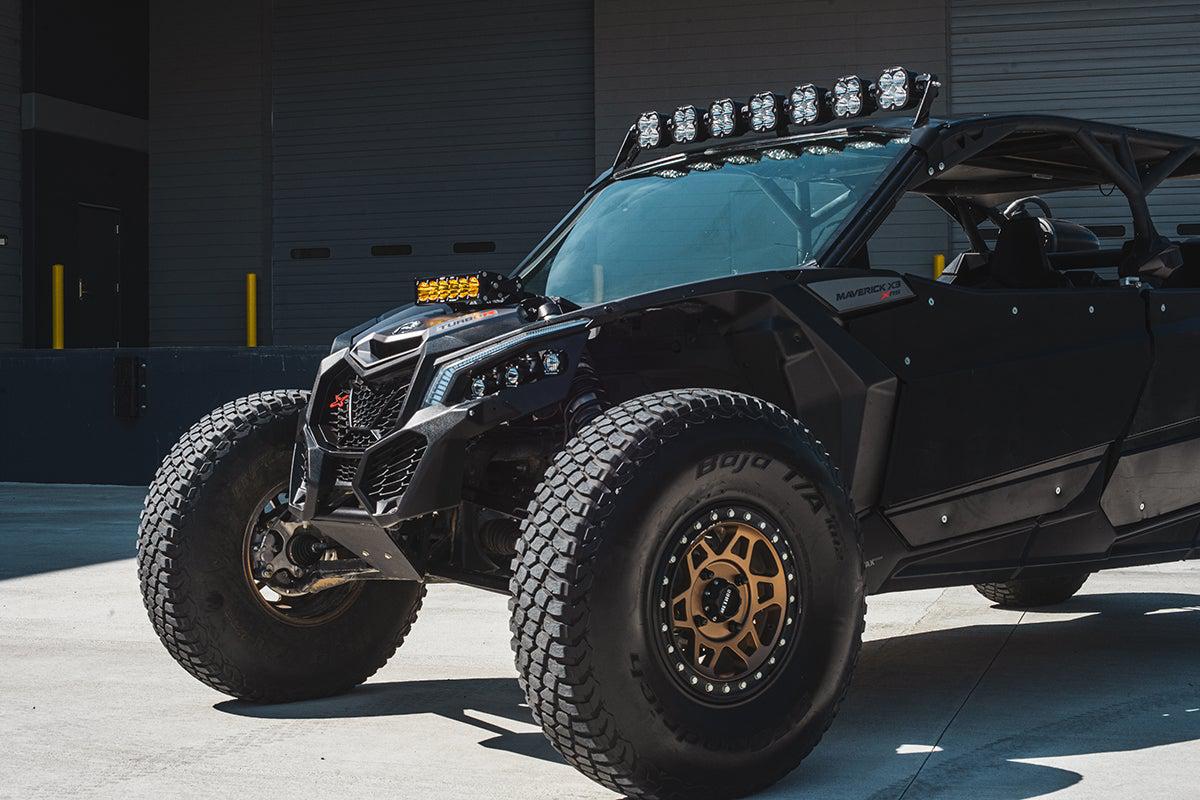

This kit is a turn key system for the Can-Am X3 owner that is looking to take down the night, and give a standoff appearance to their vehicle!
|
Baja Designs Features:
|
Specifications: Lumens: 22,050 Utilizing 28 LEDs Wattage/Amps: 182W / 14A LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing) |
Includes:
Adjustability:
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
